ADVANTAGES:

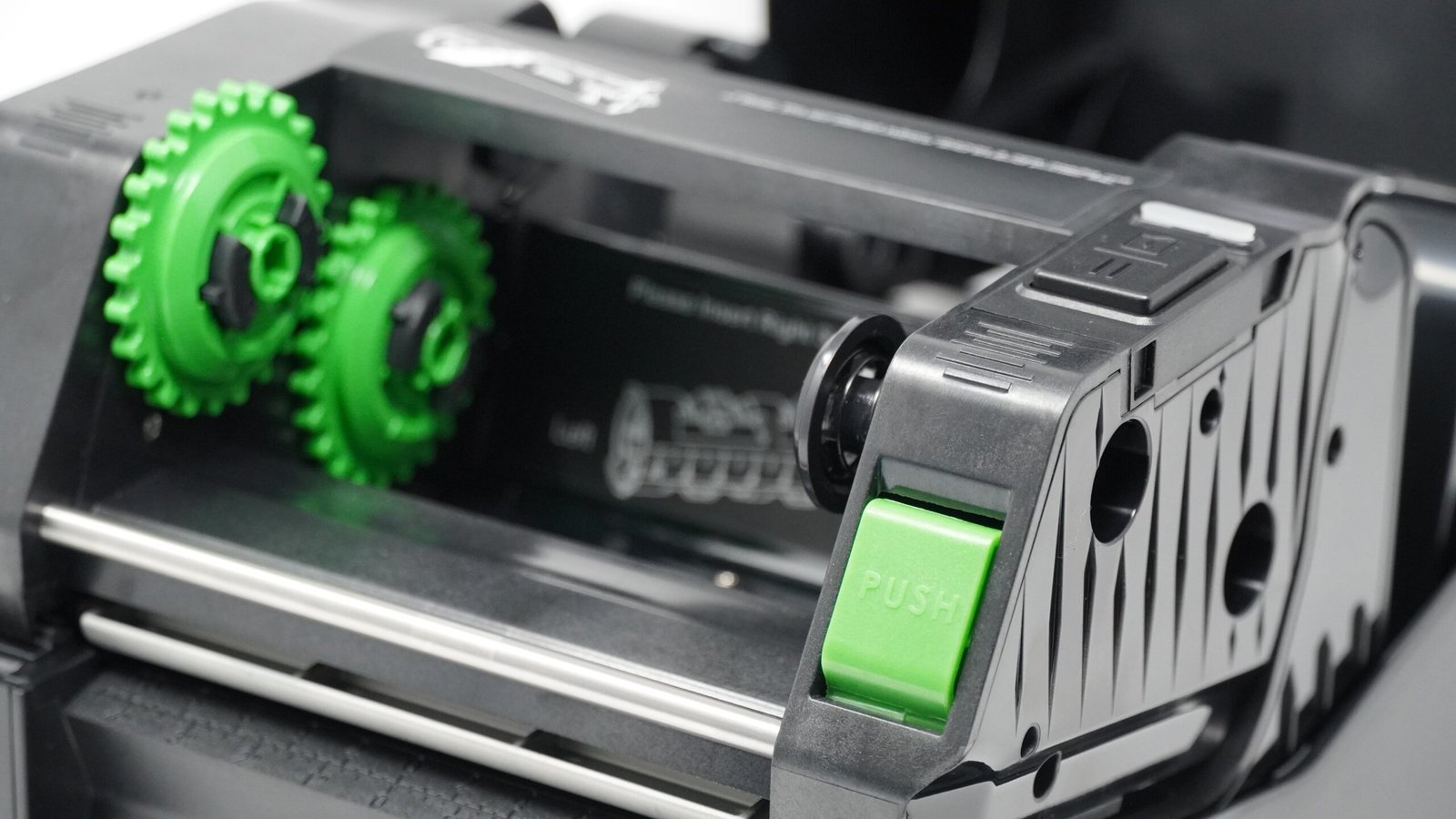

- Supports both 0.5″ and 1″ ribbon core
- Durable and user-friendly
- Removable black mark reflective sensor
- 6 IPS print speed
DURABLE AND STRONG DESIGN
HIGH PRINT RATE
AT 6-INCHES PER SEC
HIGH RIBBON CAPACITY OF 300 METRES
USB
INTERFACE
| Product Specification | Details |
|---|---|
| Resolution | 8 dots/mm 203 DPI |
| Printing Method | Thermal Transfer & Direct Thermal |
| Print Speed |
Max. 152.4 mm 6/second |
| Print width | Max. 108 mm 4.25 |
| Print Length | Max. 2.794 mm 110 |
| Physical Dimension |
204 mm W x 164 mm H x 280 mm D
|
| Weight | 2.4 kg 5.29 lbs |
| Lable roll capacity | 127 mm 5 OD |
| Ribbon | 300 m long. max. OD 67 mm. 1 core ink coated outside |
| Ribbon Width | 40 mm to 110 mm 1.6 ~ 4.3 |
| Processor | 32bit RISC CPU |
| Memory | 8 MB Flash memory. 16 MB SDRAM |
| Interface | USB 2.0 |
| Power | Input: AC 100240V. 2.5A. 5060Hz. Output: DC 24V. 2.5A. 60W |
| Sensors | Transmissive gap sensor. Black mark reflective sensor position adjustable |
| Barcode |
Code 128UCC. Code 128 subsets A. B. C. EAN128. Interleaved 2 of 5. Interleaved 2 of 5 with check digit.Code 39. Code 39 with check digit. Code 93. EAN13. EAN8. UPCA. UPCE. EAN and UPC 2 5 digits addon.Codabar. Postnet. MSI. MSI with check digit. PLESSEY. China post. ITF14. Code 11. TELEPEN. TELEPENN.PLANET. Code49. Deutsche Post Identcode. Deutsche Post Leitcode. LOGMARS
GS1 DataBar. GS1 DataMatrix. Maxicode. AZTEC. PDF417. QR Code. Micro PDF 417 |
| Printer Language | TSPLEZTM Compatible to EPL. ZPL. ZPL II |
| Media type | Continuous. diecut. black mark. fanfold. notched outside wound |
| Media Width | 20 ~ 112 mm 0.8 ~ 4.4 |
| Media Thickness | 0.06 ~ 0.19 mm 2.36 ~ 7.48 mil |
| Media Core Diameter | 25.4 ~ 38 mm 1 ~ 1.5 |
| Label length | 5 ~ 2.794 mm 0.2 ~ 110 |
| Environment Condition |
Operation: 5°C ~ 40°C. 25 ~ 85% noncondensing. Storage: ~40°C ~60°C. 10 ~ 90% noncondensing |
