ADVANTAGES:
1. 4 Thermal POS printer with superior Quality
2. High speed printing of 200 mm/sec
3. Enable with USB & Serial configuration
4. Available with Cash Drawer port
5. Compact. Front Exit & Smaller Footprint Designs
4 THERMAL POS PRINTER WITH SUPERIOR QUALITY
HIGH SPEED PRINTING OF 200 mm/sec
ENABLE WITH USB & SERIAL CONFIGURATON
AVAILABLE WITH CASH DRAWER PORT
COMPACT. FRONT EXIT & SMALLER FOOTPRINT DESIGNS
| Product Specification | Details |
|---|---|

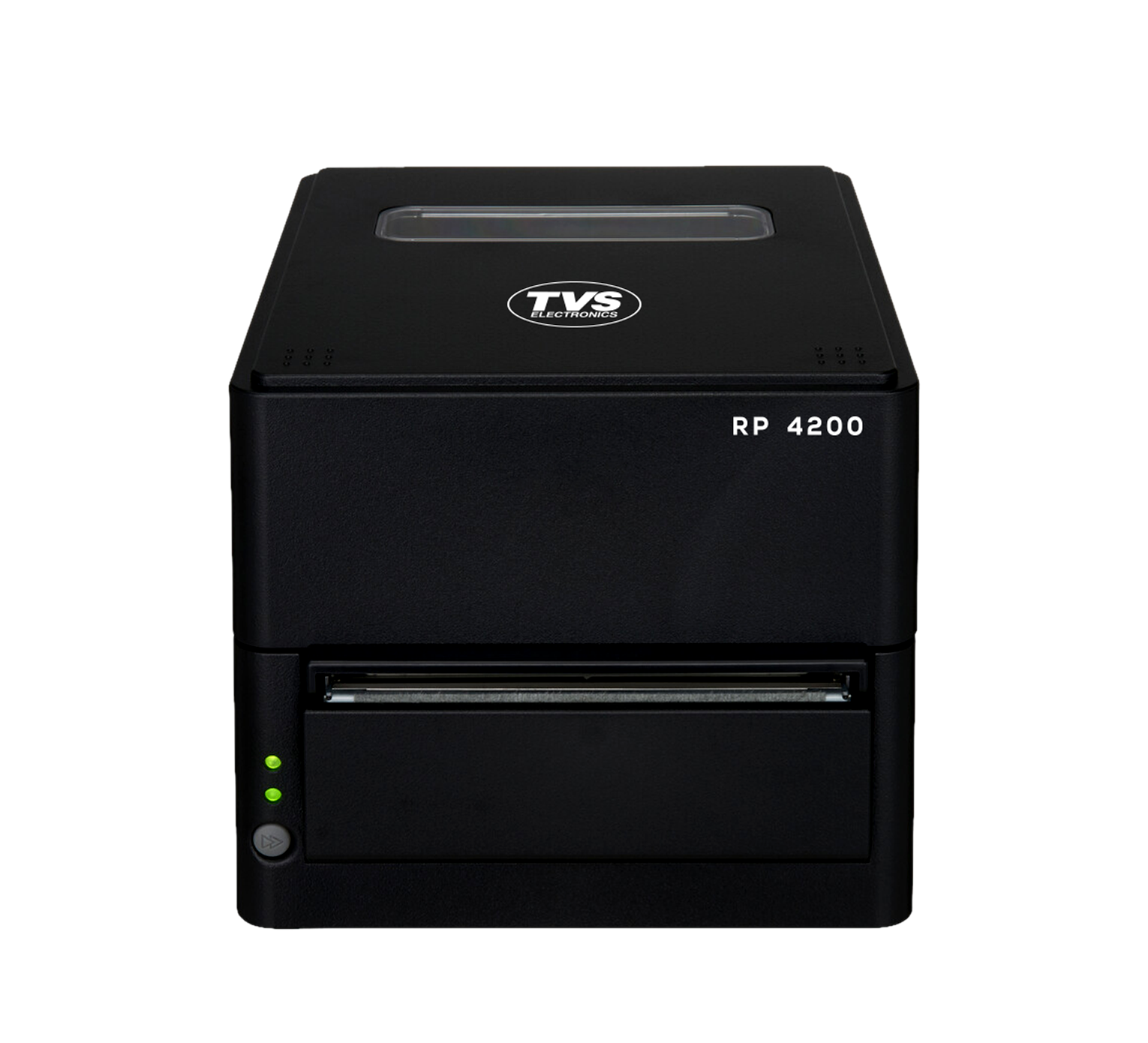

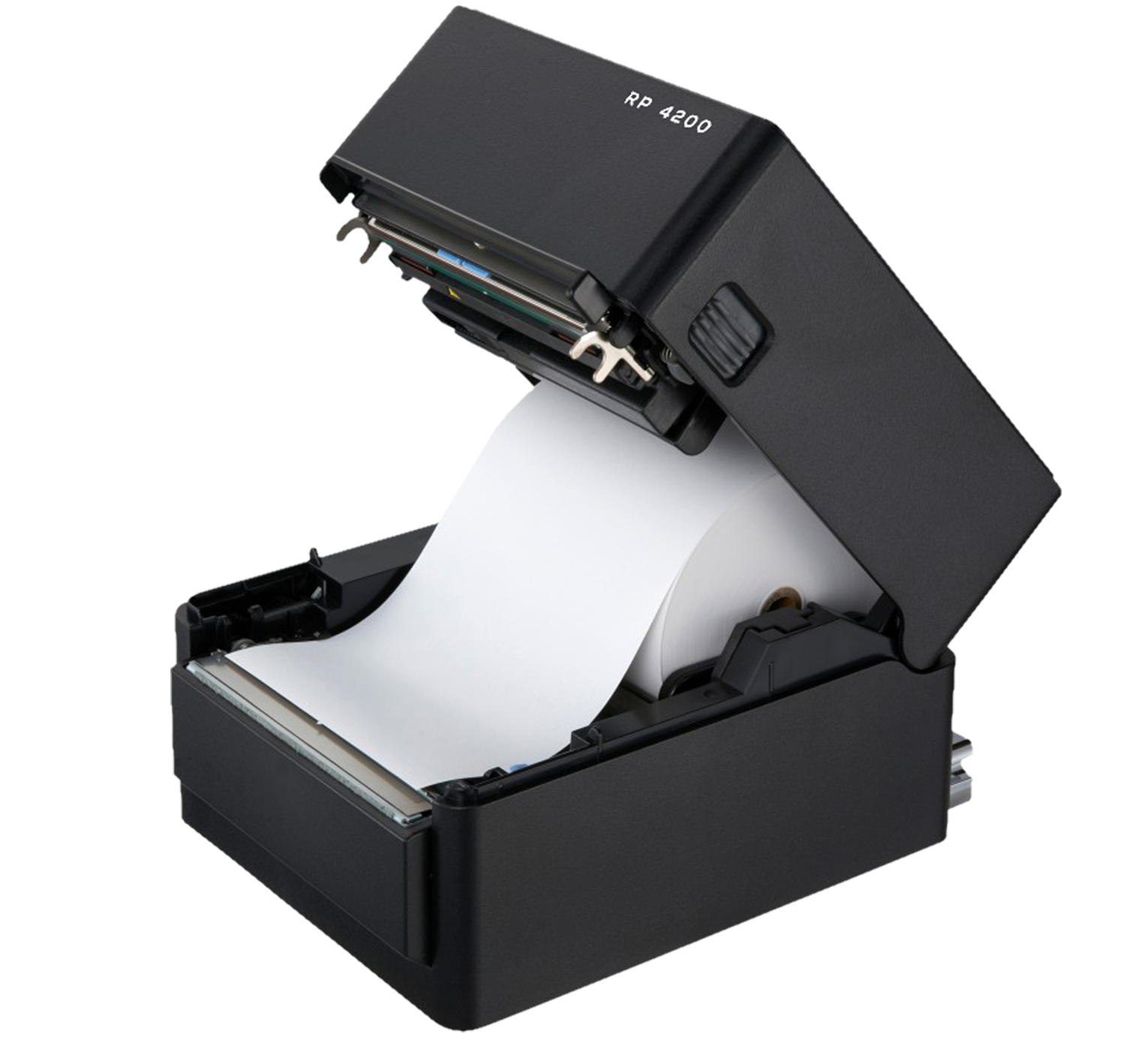

| Print Model | RP 4200 |
| Printing Method | Direct Thermal Line Printing |
| Max. Print Speed | 200mm/sec |
| Resolution | 203 dpi |
| Dot Pitch | 8 x 8 dots / mm |
| Character per line | Font A – 69 columns; Font B – 92. columns; Font C – 104 columns. [at 112 mm paper width] |
| Character set | Alpha numeric characters. International characters.PC437/850/852/857/858/860/863/864/865/866.WPC1252.Katakana.Thai code 11/18 (1 Pass/3 pass). TCWN-3.Kanji.kana.extended characters.JIS X0213.GB18030.BIG5.KS Hangul. EUC Hangul |
| Barcode fonts | UPC E/A. JAN (EAN)13 digits/8 digits.ITF. Code 39. Code 128. CODABAR(NW7). CODE 93. PDF 417. QR code.GS1 Databar |
| Paper width | 112 mm |
| Paper Thickness | Paper thickness : 68-85 µm |
| Paper roll diameter | 112 max |
| Printing width | 104 mm |
| Interface | USB. Serial |
| User memory | 384 KB(Capable of Storing user defined characters &logos |
| Bufferr size | 4 K bytes/ 45 bytes |
| Emulation | ESC/POS |
| Driver | Windows 7. Vista. 2K. XP. Linux. OPOS. VCOM |
| Cash drawer | 2 Drawers |
| Dimensions(W x D x H) mm | 170*151.3*216.2 mm (W*D*H) |
| Cutting method | Full / partial cut |
| Supply Voltage | AC 100 ~ 240V. 50 ~ 60Hz; DC 24V . 2.5 A |
| Operating Temperature | +5 to +40°C |
| Storage Temperature | -20 to +60°C |
